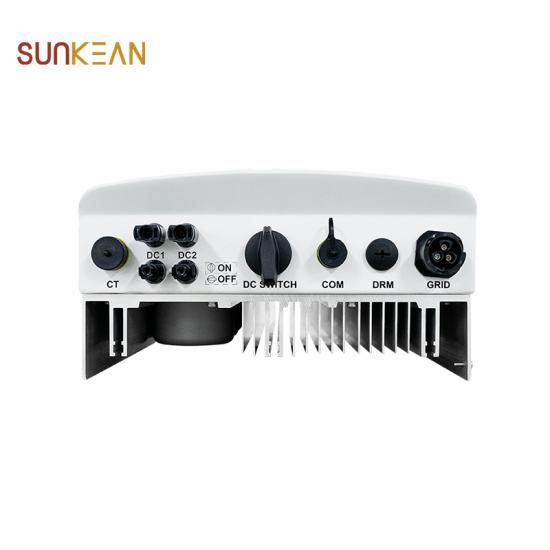

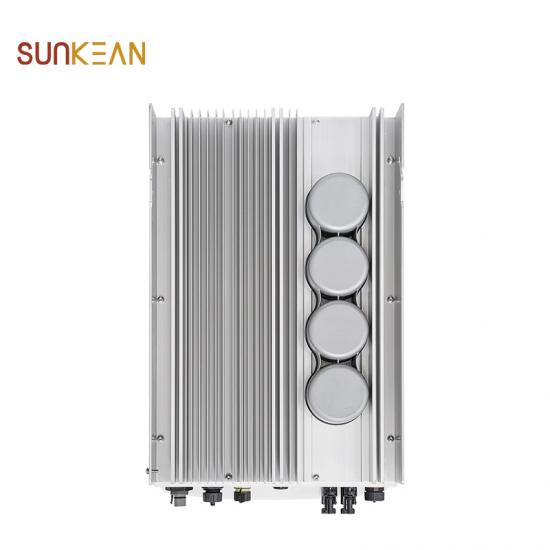

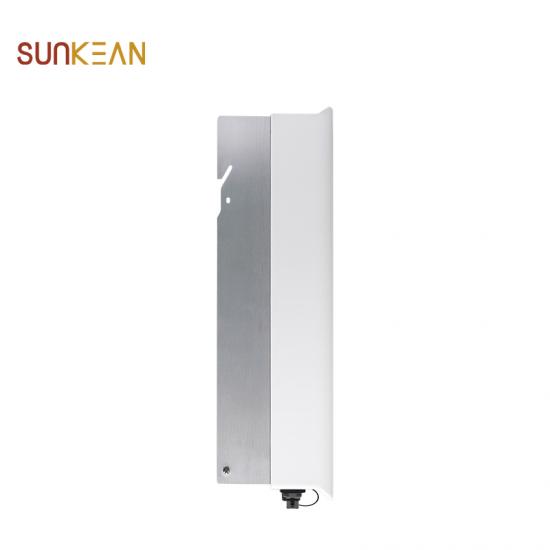

4G single phase 6kw PV grid tie inverter
6kW single phase series string inverter's efficiency of has improved dramatically. SKE-1P（6kW）-4G is suitable for the installation of single-phase input pv system of residential and adopt ultra-high switching frequency, ultra-thin single four-layer board design can greatly reduce the risk caused by the connector.
product Information:
| Datasheet | |||||||
| model name | SKE-1P2.5K-4G | SKE-1P3K-4G | SKE- 1P4K -3.6G | SKE- 1P4K -4G | SKE- 1P4.6K -4G | SKE- 1P5K -4G | SKE- 1P6K -4G |
| input dc | |||||||
| recommended max. PV power | 3kW | 3.5kW | 4.2kW | 4.6kW | 5.3kW | 5.8kW | 6.6kW |
| Max. input voltage | 550V | 600V | |||||
| rated voltage | 250V | 330V | |||||
| Start-up voltage | 60V | 120V | |||||
| MPPT voltage range | 50-450V | 90-520V | |||||
| Max. input current | 11A/11A | ||||||
| Max. short circuit current | 17.2A/17.2A | ||||||
| MPPT number/Max. input strings number | 2/2 | ||||||
| output ac | |||||||
| rated output power | 2.5kW | 3kW | 3.6kW | 4kW | 4.6kW | 5kW | 6kW |
| Max. apparent output power | 2.8kVA | 3.3 kVA | 4kVA | 4.4kVA | 5kVA | 5kVA | 6kVA |
| Max. output power | 2.8kW | 3.3kW | 4kW | 4.4kW | 5kW | 5kW | 6kW |
| rated grid voltage | 1/N/PE,220/230V | ||||||
| rated grid frequency | 50/60HZ | ||||||
| rated grid output current | 11.4A/10.9A | 13.6A/13.0A | 16A/15.7A | 18.2A/17.4A | 20.9A/20.0A | 22.7A/21.7A | 27.3A |
| Max. output current | 13.3A | 15.7A | 16.0A | 21.0A | 23.8A | 25.0A | 27.3A |
| power factor | >0.99 (0.8 leading - 0.8 lagging) | ||||||
| THDi | <3% | ||||||
| efficiency | |||||||
| Max. efficiency | 97.8% | 98.1% | |||||
| eu efficiency | 97.1% | 97.3% | |||||
| protection | |||||||
| dc reverse-polarity protection | yes | ||||||
| short circuit protection | yes | ||||||
| output over current protection | yes | ||||||
| surge protection | yes | ||||||
| grid monitoring | yes | ||||||
| Anti-islanding protection | yes | ||||||
| temperature protection | yes | ||||||
| integrated dc switch | optional | ||||||
| general data | |||||||
| Dimensions(W*H*D) | 310*543*160 mm | ||||||
| weight | 11.5kg | ||||||
| topology | Transformerless | ||||||
| self consumption | <1W (night) | ||||||
| operating ambient temperature range | -25~ +60°C | ||||||
| relative humidity | 0-100% | ||||||
| ingress protection | IP65 | ||||||
| cooling concept | natural convection | ||||||
| Max. operation altitude | 4000m | ||||||
| grid connection standard | VDE-AR-N 4105, VDE v 0124, VDE v 0126-1-1, ute C15-712-1, NRS 097-1-2, G98, G99, en 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727 | ||||||
| Safety/EMC standard | IEC 62109-1/-2, IEC 62116, en 61000-6-2/-3 | ||||||
| features | |||||||
| dc connection | MC4 connector | ||||||
| ac connection | quick connection plug | ||||||
| display | lcd | ||||||
| communication | RS485, Optional: Wi-Fi, GPRS | ||||||
product Features:
------Max. efficiency 98.1%;
------ super high frequency switching technology;
------ wide voltage range and low startup voltage;
------ 2 MPPT design withprecise MPPT algorithm;
------ Intergrated export power manager (EPM);
------ compact and lightweight;
------ friendly and adaptable connection to the grid.
